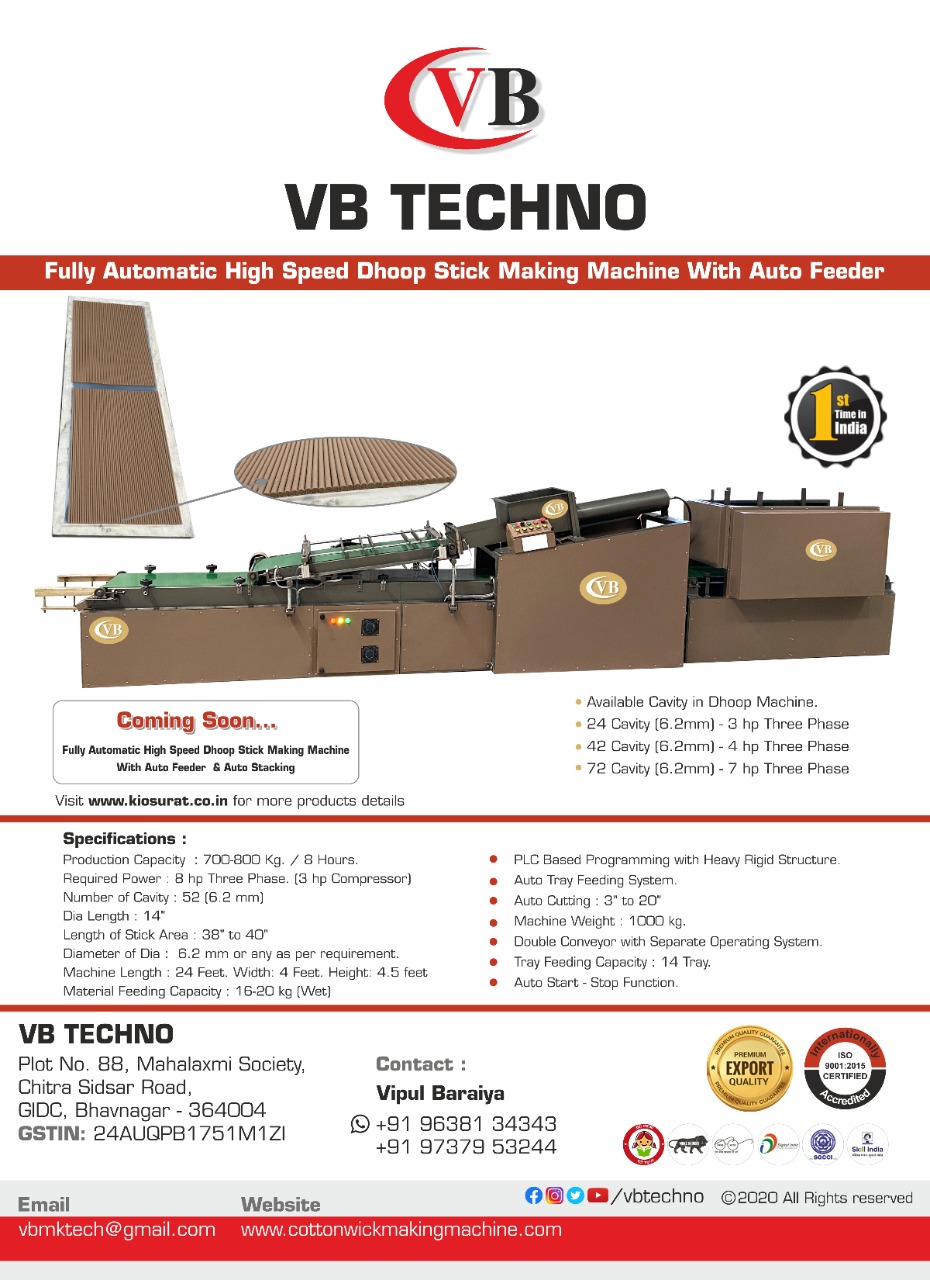

Fully Automatic High Speed Dhoop Stick Making Machine With Auto Feeder And Auto Tray Collection

Specification :

• Production Capacity : 700-800Kgs / 8 Hours
• Required Power : 8HP Three Phase (3HP Compressor )
• Number of Cavity : 52 ( 6.2mm)
• Dia Length : 14"
• Length of Stick Area : 38" to 40"
• Diameter of Dia : 6.2 mm Or any as per requirement.
• Machine Length :24 Feet. Width :4feet Height :4.5 Feet
• Material Feeding Capacity : 16-20Kg (Wet)
• PLC Based Programming with heavy rigid structure.
• Auto Tray Feeding System
• Auto Cutting : 3" to 20"
• Machine Weight : More than 1000 Kg
• Double Conveyor With Separate Operating System.
• Tray Feeding Capacity : 14 Tray
• Auto Start - stop Function

• 24 Cavity (6.2mm) - 3 HP Three Phase
• 42 Cavity (6.2mm) - 4 HP Three Phase
• 72 Cavity (6.2mm) - 7 HP Three Phase
